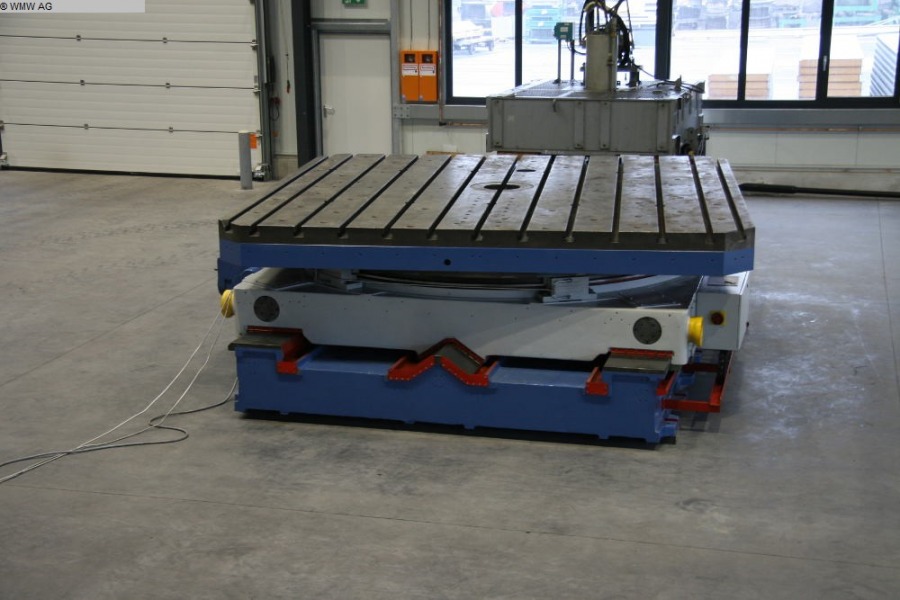

Stanko-WMW NS3A

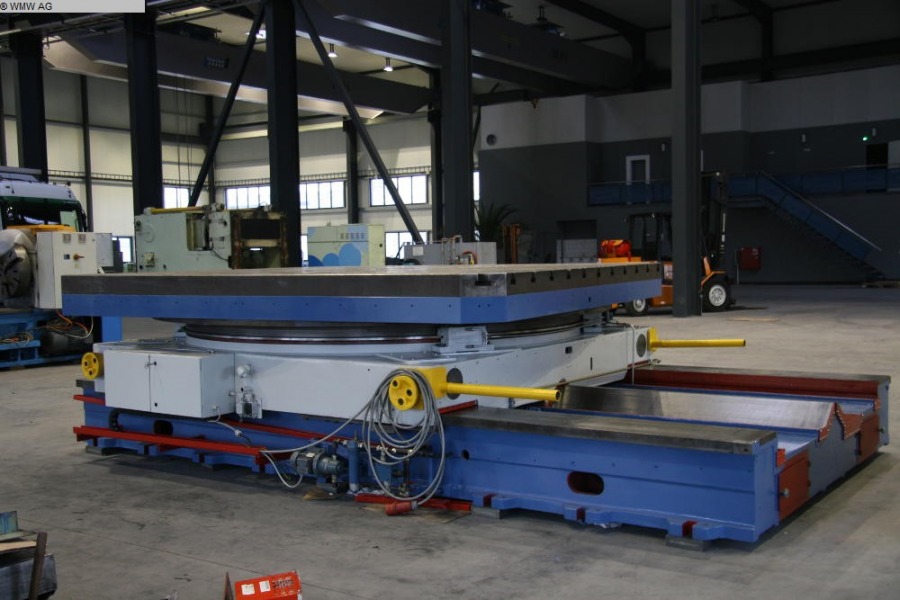

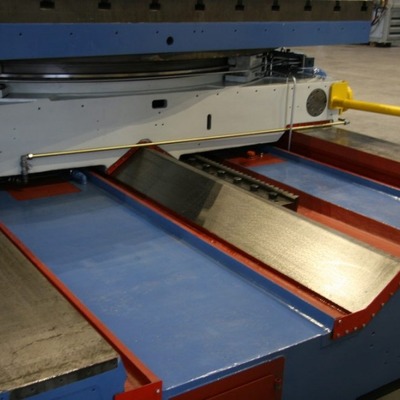

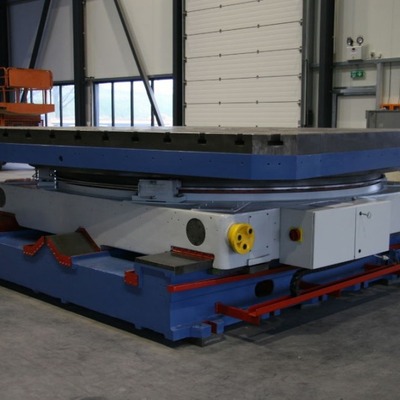

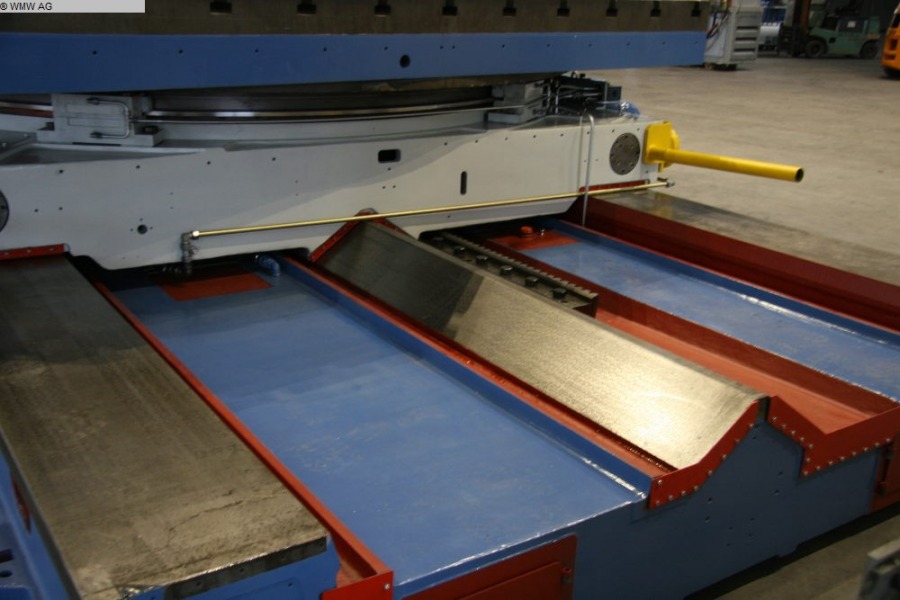

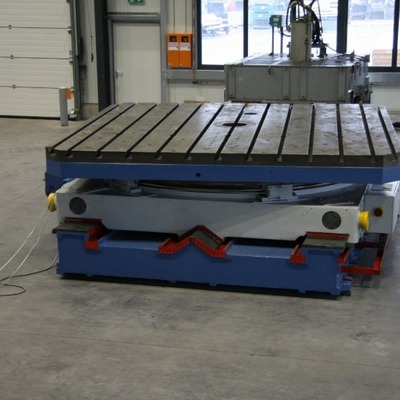

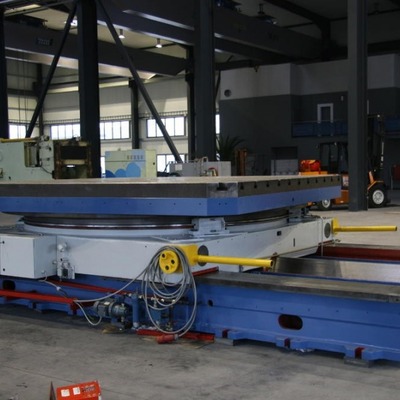

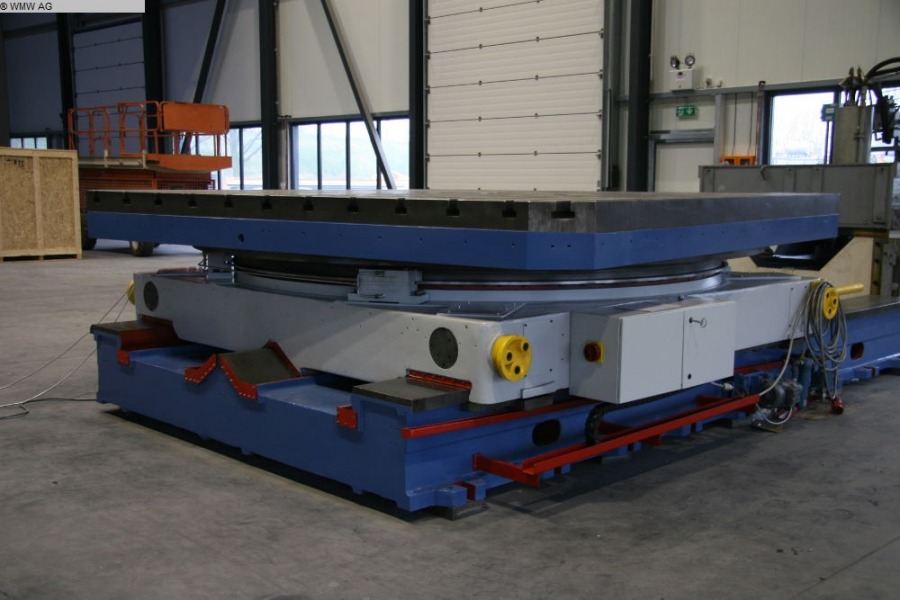

Rotary Table - Boring | Stock number: 1104001
Description
Rotary Table has been mechanically and electric overhauled; equipped with a digital measuring system (DRO) for x-travel and rotation control via control panel
Details
- table length: 3600 mm
- table width: 3600 mm
- table load: 50 t
- table height over floor: 1350 mm
- table travel: 2000 längs mm
- table speeds: ca. 1000 mm/min
- table rotating: 360 °
- total power requirement: 14 kW
- weight of the machine approx.: 38,5 t
- space requirement of the machine approx.: 6,2x3,7x1,4 m
- dimension machine approx.LxWxH: 5,5x3,7x1,4 m
work performed
- Integration of a digital position measuring system for x-travel and rotary

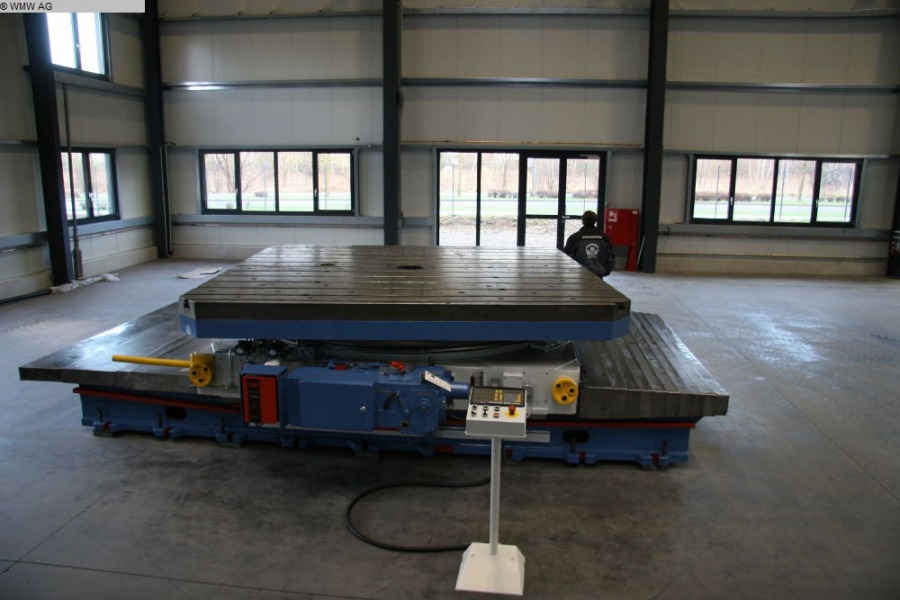

- Integration of a controller via a control panel
- Renewal of hydraulic pipes
- New bearings of axis gear
- Cabinet and complete wiring were renewed
- Retrofitted frequency
- Preparation of the required documentation (user manual, electrical and hydraulic diagram)
Subject to changes and errors in technical details and specifications, as well as prior sale.
